The peristaltic pump
for media that is abrasive, viscous or contains solids

Pumps media containing a high proportion of solids and at a flow rate of up to 300 m³/h
The PERIPOWER peristaltic pump is a powerful self-priming positive displacement pump, which impresses customers with its extreme robustness and ease of maintenance. It operates in such a way that abrasive media and media that is sensitive to shearing can be gently pumped. Our peristaltic pumps are ideally designed to efficiently pump media with a viscosity of up to 20,000 mPas, 25 % dry matter content as well as particles with a size of up to 40 % of the hose diameter. You can rely on our pumps to deliver first-class performance in a wide range of applications.
The FLUX PERIPOWER peristaltic pump needs very little maintenance and is designed for longevity. Should maintenance be required, the user-friendly design allows the hose to be replaced with ease in a matter of minutes. There is no need for special tools, and specialist staff don’t have to be present on site. keeping your systems ready for use at all times.
Properties and design

Areas of application

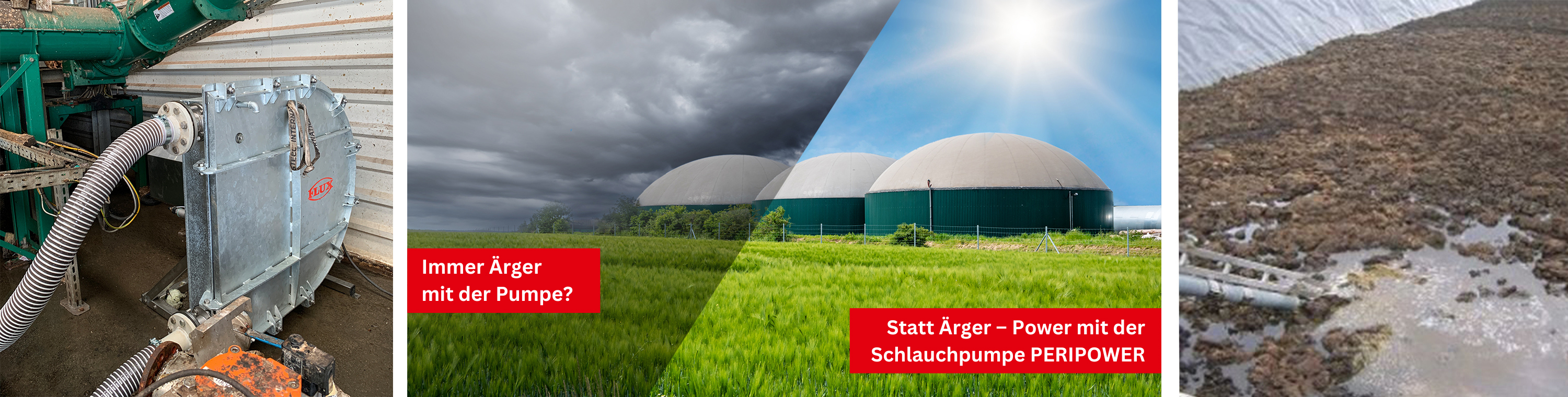

Biogas plant
Peristaltic pumps are the ideal solution for use in biogas plants. No matter whether the plant processes liquid manure, rye, maize or food waste, the pump constantly pumps sludge-like media and media containing solids. These pumps are distinguished by their robust design and very low energy consumption.
Gallery – for a large view please click on the image
Mining
Perfectly tailored to mining, the PERIPOWER proves its worth when pumping slurry in particular. This sticky sludge, consisting of abrasive raw materials such as clay and chalk, is transported effortlessly. As the only wear part in direct contact with the medium, the hose makes simple maintenance possible and greatly reduces downtimes.
Gallery – for a large view please click on the image
Chemicals
The PERIPOWER is the perfect solution for pumping challenging media in the chemicals industry. Developed to pump a huge range of different chemical substances, the PERIPOWER wins over customers with its outstanding efficiency. We can provide the perfect hose for virtually every application and they all come with very good chemical resistance.
Gallery – for a large view please click on the image
Paper
The PERIPOWER is also the perfect choice for use in the paper industry, especially for pumping challenging, fibrous media. Through its special design, it allows various substances used in the paper manufacturing process to be handled efficiently.
Gallery – for a large view please click on the image
Food & beverage
The PERIPOWER is the ideal solution for use in the food & beverage industry where there are very stringent hygiene and efficiency standards. Especially developed to pump challenging media in the foods and beverage industry, this pump ensures reliable handling. The hoses are available in FDA-compliant materials.
Gallery – for a large view please click on the image
How to change the hose
Step 1
Drain glycerine from pump housing through outlet at the lowest point
Step 2
Remove front of housing
Step 3
Open hose clips
Step 4
Pull hose out through connection
Step 5
Offer hose up to connecting piece
Step 6
Turn motor manually to pull hose through pump
Step 7
Secure front
Step 8
Fill housing with glycerine until half-way up the housing
